1 Pin 1 Way Toyota 2JZ Knock Sensor Connector Plug 7283-1015-10 90980-11166

Name: 1 Pin 1 Way Toyota 2JZ Knock Sensor Connector Plug 7283101510 9098011166
Brand: YBADDVANCE
Price: 1 USD

1 Pin 1 Way Toyota 2JZ Knock Sensor Connector Plug 7283-1015-10 90980-11166 Manufactures

Brand Name : YBADDVANCE

Model Number : 7283-1015-10

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Number of position : 1 Pin

Color : Gray

P/N : 90980-11166

Series : 2.3II(090II) Series

Feature : Waterproof

HS code : 8536909000

Connection Type : Wire to Wire,Wire to Board,Wire to Device

Application : For Toyota Cars

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

1 Pin 1 Way Toyota 2JZ Knock Sensor Connector Plug 7283-1015-10 90980-11166

Description

1 Way Knock Sensor Connector Plug Toyota # 90980-11166 come with terminals and seals and this Knock Sensor Connector on thousands of Toyota & Lexus applications.This connector from YBADDVANCE brands rather than original.

1 X Connector Housing

1 X Wire seals

1 X crimp terminals

Specification

Item name	1 Pin knock sensor connector
P/N	7283-1015-10
Mating Part Numbers	90980-11166
Wire Size	18-22AWG
Operating Temperature range	-40~125 deg.C
Insulation resistance	100M Min.
MOQ	100 units/lot
Tab Width mm(inches)	2.3(090)
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
Number of Pin	1 Way
Color	Gray
Warranty	1 year
Application	For toyota japanese cars

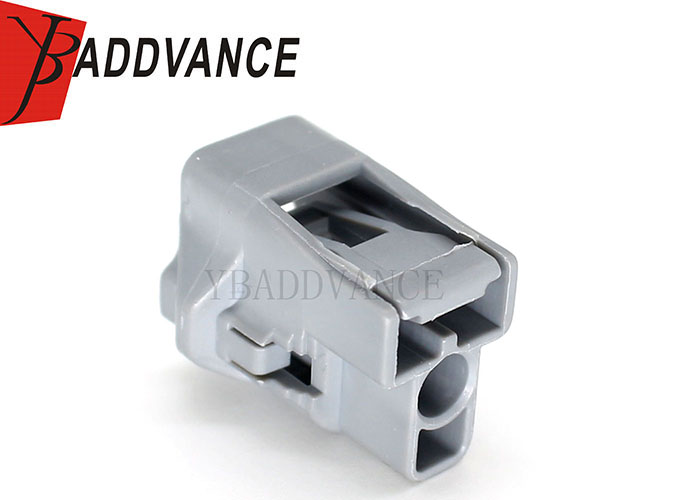

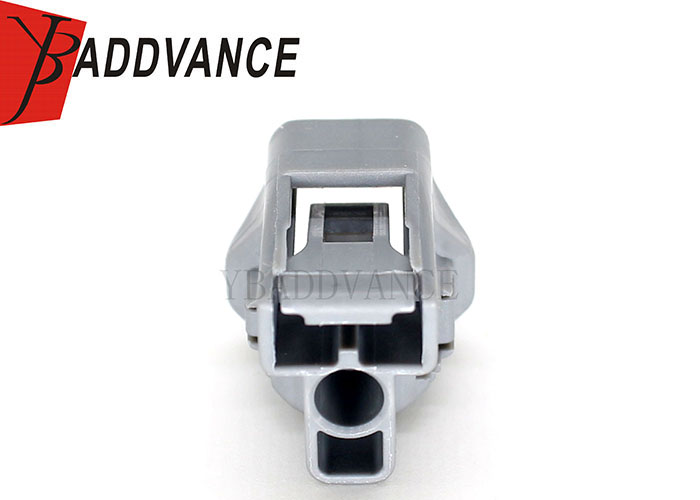

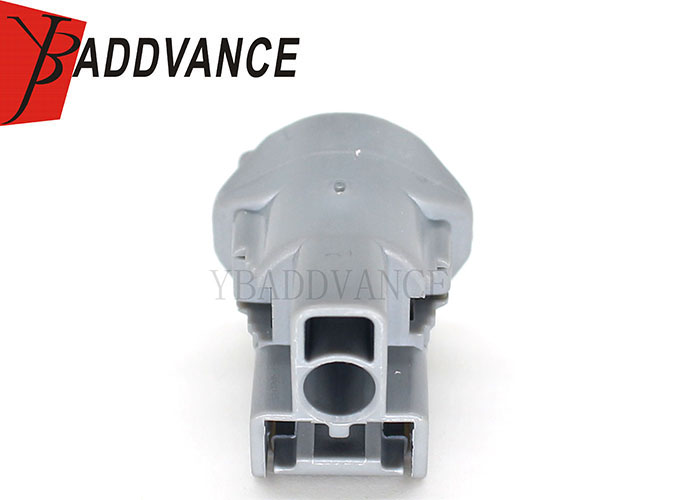

Product Picture Details

1 Pin 1 Way Toyota 2JZ Knock Sensor Connector Plug 7283-1015-10 90980-11166
